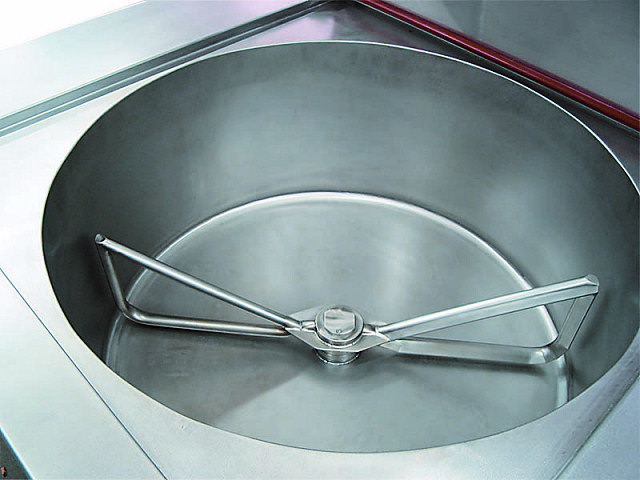

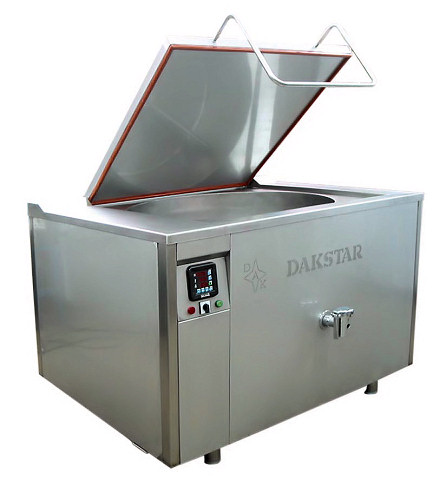

Heat boilers with mixer arm are used for melting the fat and also for boiling all the products that require mixing. The tank of the boiler is surrounded by oil jacket, heated to the high temperature by oil/gas burner, electric heaters or steam heater.
The tank and oil jacket are thermal isolated, which improves the efficiency of the boiler.
We produce boilers’ capacity range from 300 to 1200 liters and also others, customized versions.
|
Sposób ogrzewania,
Способ нагрева,
Heating source,
Heizungsart
|
Olej/Gaz, Масло/Газ, Oil/Gas, Öl/Gas
|
Elektryczny, Электрический, Eelectrical, Elektrisch
|
Para, Пар, Steam, Dampf
|
Pojemność kotła,
Объём котла,
Heat boiler capacity,
Volumen;
|
300 l
|
500 l
|
750 l
|
1000 l
|
1500 l
|
300 l
|
500 l
|
750 l
|
1000 l
|
1500 l
|
300 l
|
500 l
|
750 l
|
1000 l
|
1500 l
|

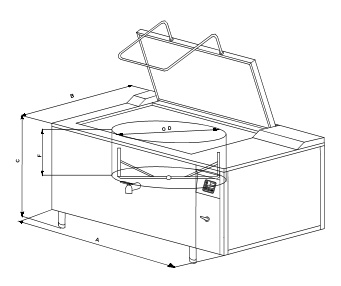

Wymiary zewnętrzne,
Наружные размеры,
External dimensions,
Außenmaße,
|
długość
lenght/lange
ДЛИНА
|
1720
|
1820
|
1990
|
2100
|
2150
|
1530
|
1630
|
1800
|
2000
|
2050
|
1550
|
1650
|
1820
|
2000
|
2050
|
szerokość
width/breite
ШИРИНА
|
1310
|
1410
|
1580
|
1700
|
1750
|
1310
|
1410
|
1580
|
1660
|
1710
|
1310
|
1410
|
1580
|
1660
|
1710
|
wysokość
height/hohe
ВЫСОТА
|
1100
|
1150
|
1270
|
1500
|
1790
|
980
|
1030
|
1150
|
1380
|
1670
|
930
|
980
|
1100
|
1330
|
1620
|
Wymiary wewnętrzne,
Внутренные размеры,
Internal dimensions,
Innermaße,
|
średnica
diameter
Durchmesser
диаметр
|
1000
|
1100
|
1270
|
1350
|
1400
|
1000
|
1100
|
1270
|
1350
|
1400
|
1000
|
1100
|
1270
|
1350
|
1400
|
głębokość
depth
Tiefe
глубина
|
450
|
500
|
600
|
700
|
1000
|
450
|
500
|
600
|
700
|
1000
|
450
|
500
|
600
|
700
|
1000
|
Moc cieplna,
Тепловая мощность,
Thermal power,
Thermische Leistung
|
[kW]
|
22
|
30
|
40
|
52
|
75
|
24
|
30
|
41
|
54
|
72
|
20
|
30
|
40
|
50
|
70
|
Zużycie czynnika grzewczego,
Разход сресств питания нагрева,
Heating medium consumption,
Heizmedium-verbrauch
|
Gaz,
Газ,
gas
[m³/h]
|
2,2
|
3,0
|
4,1
|
5,4
|
7,8
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
Olej,
Масло,
oil ;
öl[kg/h]
|
2
|
2,9
|
3,8
|
5,1
|
7,0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
Para,
Пар,
steam,
dampf
[kg/h]
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
40
|
57
|
72
|
98
|
156
|
Masa całkowita,
Полная масса,
Total weight,
Gesamtgewicht
|
[kg]
|
410
|
510
|
570
|
850
|
1280
|
310
|
390
|
450
|
700
|
1140
|
320
|
400
|
460
|
720
|
1160
|
|
